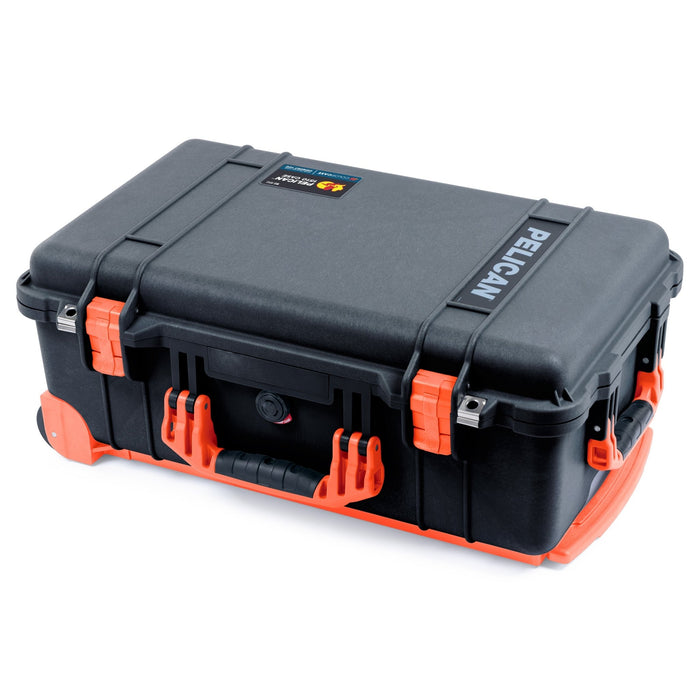

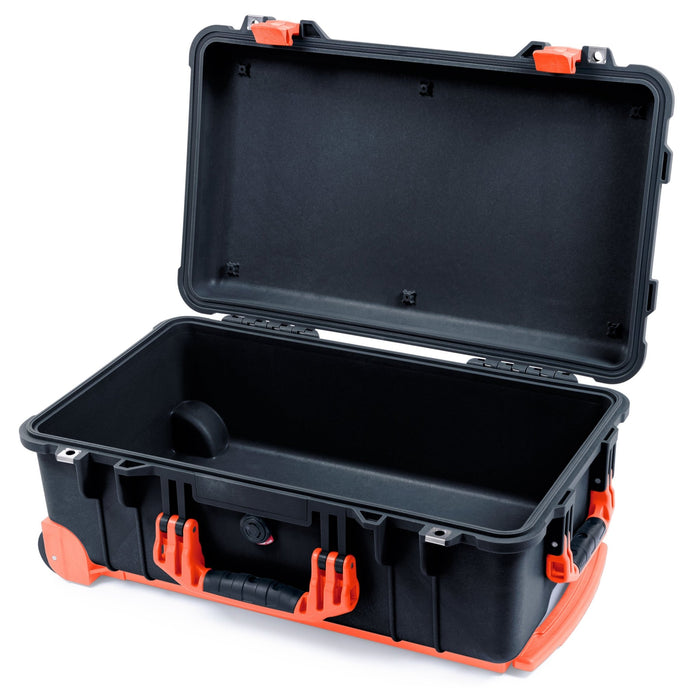

Pelican 1510 Case - Black & Orange Trolley

Pelican™ 1510 Carry-On Hard Case

• Interior: 19.75" x 11.00" x 7.58"
• Weight: 11.99 lbs
• Series: Protector Case
• Case Color: Black
• Handle, Latch & Trolley Color: Red
• Wheels: Two (2)
• Extendable Trolley Handle: Yes

• Features
• Dimensions
• Specs
• Accessories
• Drawings

• • Meets FAA carry-on luggage regulations
  • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene travel case

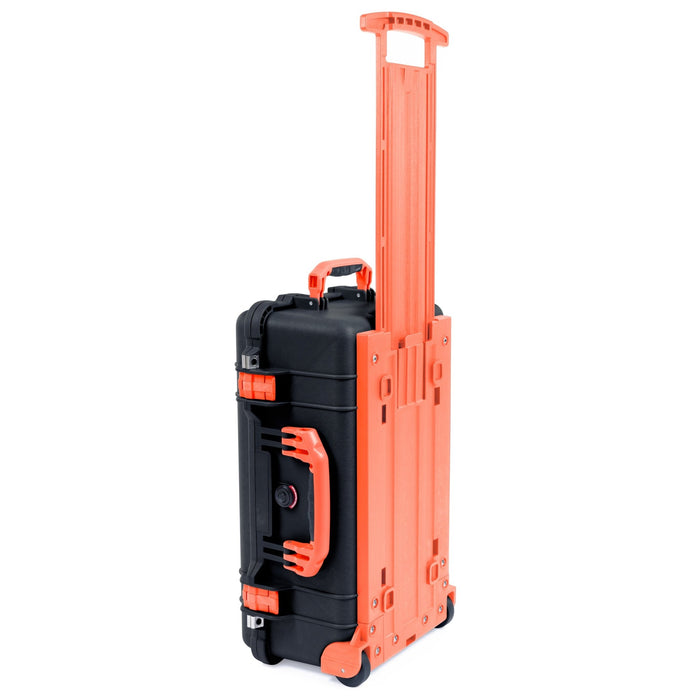

  • Retractable 16" extension handle and polyurethane wheels with stainless steel bearings for rolling travel
  • Two easy to open double-throw latches
  • Ergonomic comfort grip rubber over-molded handles
  • Stainless steel hinge pins and reinforced padlock protectors
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 1.79" (4.5 cm)
  • Bottom Depth: 5.79" (14.7 cm)
  • Total Depth: 7.58" (19.3 cm)
  • Interior (L X W X D): 19.75" x 11.00" x 7.58" (50.2 x 27.9 x 19.3 cm)
  • Exterior (L X W X D): 22.00" x 13.81" x 9.00" (55.9 x 35.1 x 22.9 cm)
  • Weight (Empty): 11.99 lbs (5.4 kg)
• • Internal Volume: 0.96 ft³
  • Buoyancy: 64.15 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven
  • Wheels Material: Polyurethane, Stainless Steel
  • Extendable Handle Material: Polypropylene

• Mesh Lid Organizer

  • Five mesh zipper pockets, plastic backing
  • Installs with 6 included screws



  Computer Lid Pouch

  • Fits laptop computers up to 15" x 11"
  • Removable computer pouch with additional zipper pouch, plastic backing
  • Installs with 6 included screws



  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1510, two (2) divider inserts 20" in length, two (2) divider inserts 16" in length; & one (1) divider insert 6" in length
  • One cutter tool, 20 pins, & 20 red pull tabs
  • Polyurethane bottom foam



  Gray Microfiber Padded Dividers

  • 5" deep black & gray adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 9.5" long, 3/4" thick hinged microfiber dividers
  • Nine (9) 5.5" long, 3/4" thick microfiber dividers
  • Three (3) 2.5" long, 3/4" thick microfiber dividers
  • Four (4) 6" long, elastic Velcro straps



  Yellow Microfiber Padded Dividers

  • 5" deep black & yellow adjustable microfiber dividers with 3/4" thick perimeter padding & 3/4" thick bottom padding
  • Two (2) 9.5" long, 3/4" thick hinged microfiber dividers
  • Six (6) 5.5" long, 3/4" thick microfiber dividers
  • Two (2) 2.5" long, 3/4" thick microfiber dividers
  • Four (4) 6" long, elastic Velcro straps



  Custom Tool Control Kit

  • Three (3) black 7/8" thick polyethylene foam inserts
  • One (1) black 2" thick polyethylene bottom foam insert
  • Three (3) red ABS plastic bottom backers (for removable trays) & one (1) red foam bottom backer (for bottom tray)
  • DIY Assembly: Trace your tools, carefully cut black foam to create tool pockets, and glue black foam to red ABS plastic for shadowboard effect
  • Includes polyurethane convolute lid foam

• Download CAD Drawings*

  • Pelican 1510 Lid Dimensional Drawing
  • Pelican 1510 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
