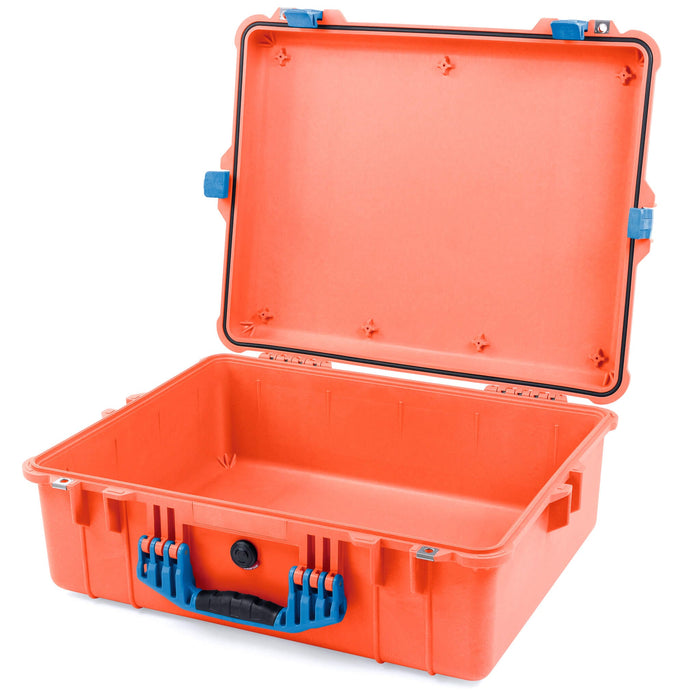

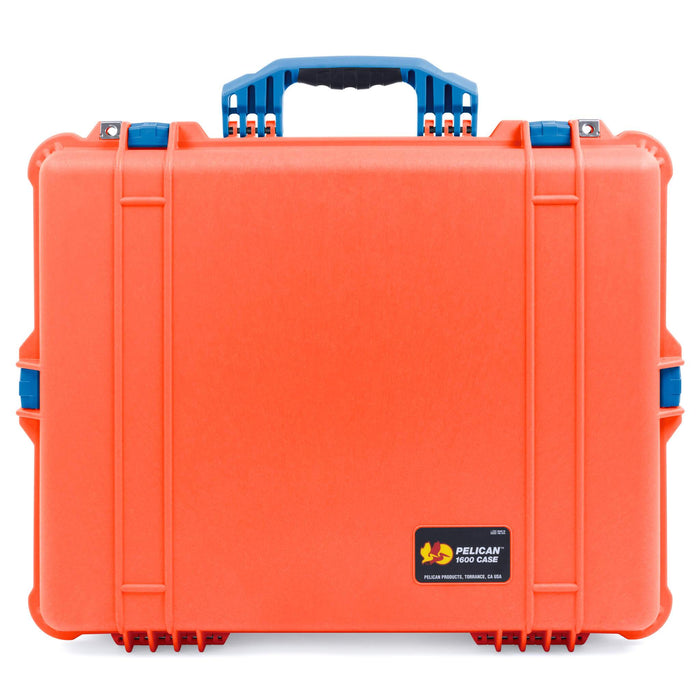

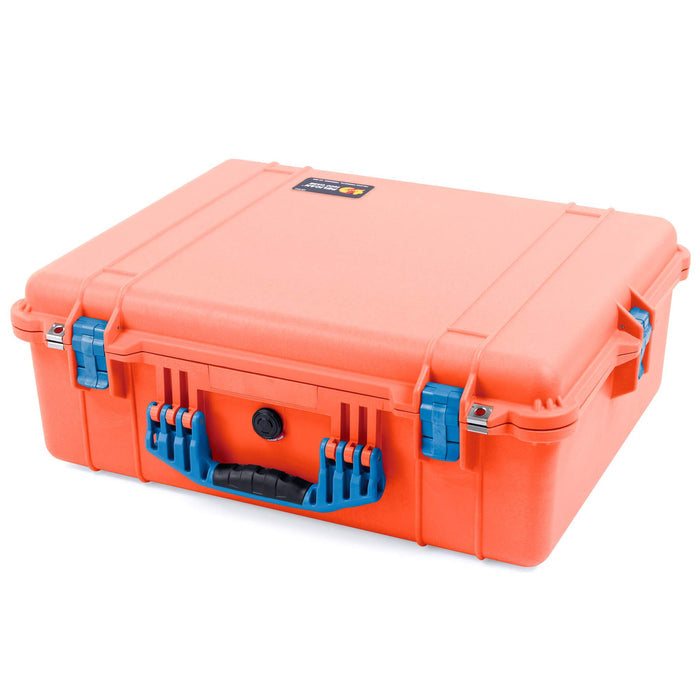

Pelican 1600 Case - Orange & Blue

Pelican™ 1600 Hard Case

• Interior: 21.51" x 16.54" x 7.99"
• Weight: 13.00 lbs
• Series: Protector Case
• Case Color: Orange
• Handle & Latches Color: Blue

• Features
• Dimensions
• Specs
• Accessories
• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene case
  • Four easy to open double-throw latches
  • Stainless steel hinge pins
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 1.75" (4.4 cm)
  • Bottom Depth: 6.12" (15.5 cm)
  • Total Depth: 7.87" (20 cm)
  • Interior (L X W X D): 21.51" x 16.54" x 7.99" (54.6 x 42 x 20.3 cm)
  • Exterior (L X W X D): 24.39" x 19.36" x 8.79" (62 x 49.2 x 22.3 cm)
  • Weight (Empty): 13.00 lbs (5.9 kg)
• • Internal Volume: 1.65 ft³
  • Buoyancy: 117.00 lbs
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven

• CVPKG Mesh Lid Organizer

  • Five mesh zipper pockets, plastic backing
  • Installs with 7 included screws



  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.



  TrekPak Divider System

  • Custom length perimeter insert for Pelican 1600, two (2) divider inserts 23" in length, & two (2) divider inserts 9" in length
  • One cutter tool, 30 pins, & 30 red pull tabs
  • Polyurethane bottom foam

• Download CAD Drawings*

  • Pelican 1600 Lid Dimensional Drawing
  • Pelican 1600 Base Dimensional Drawing



  *CAD drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
