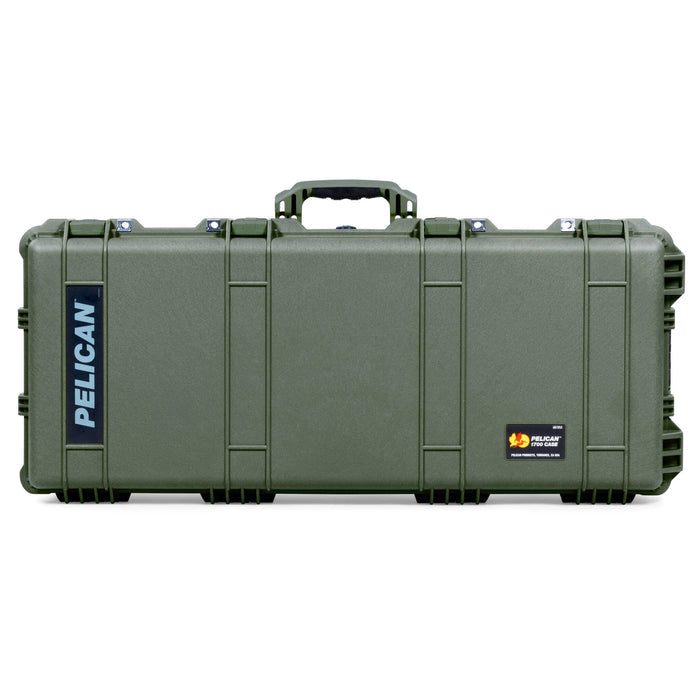

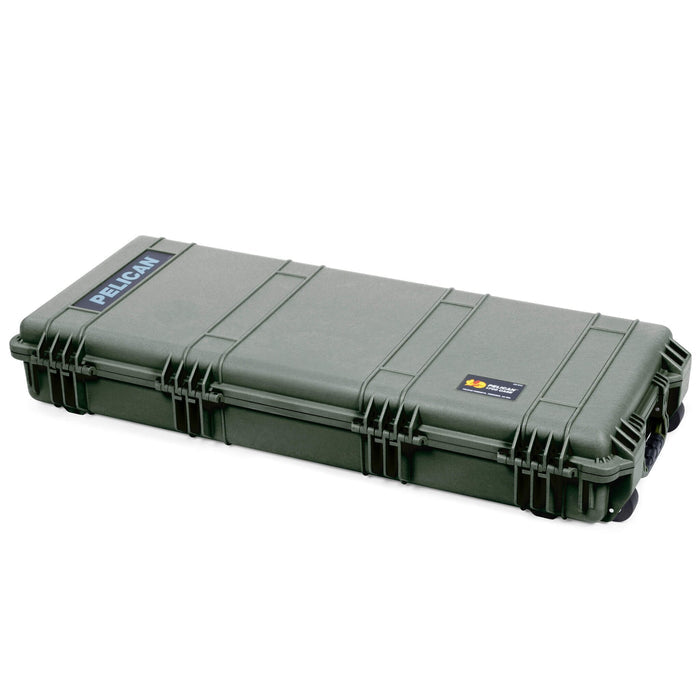

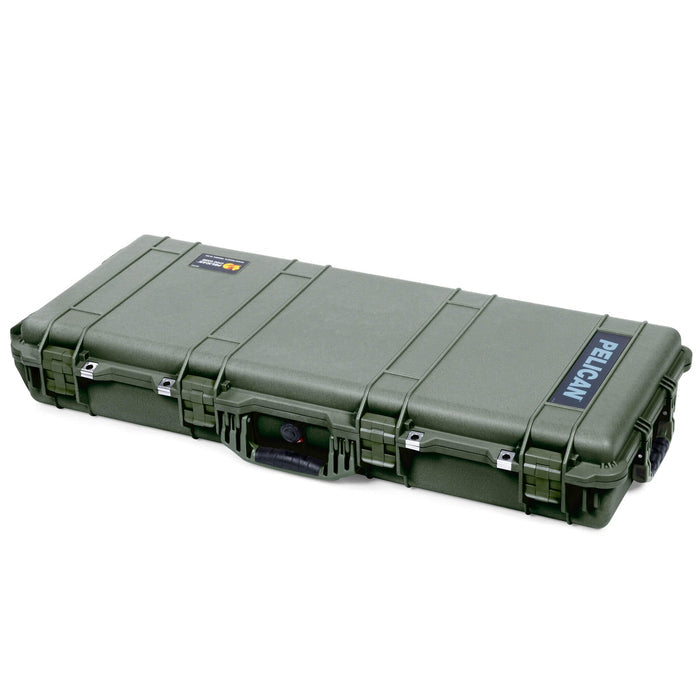

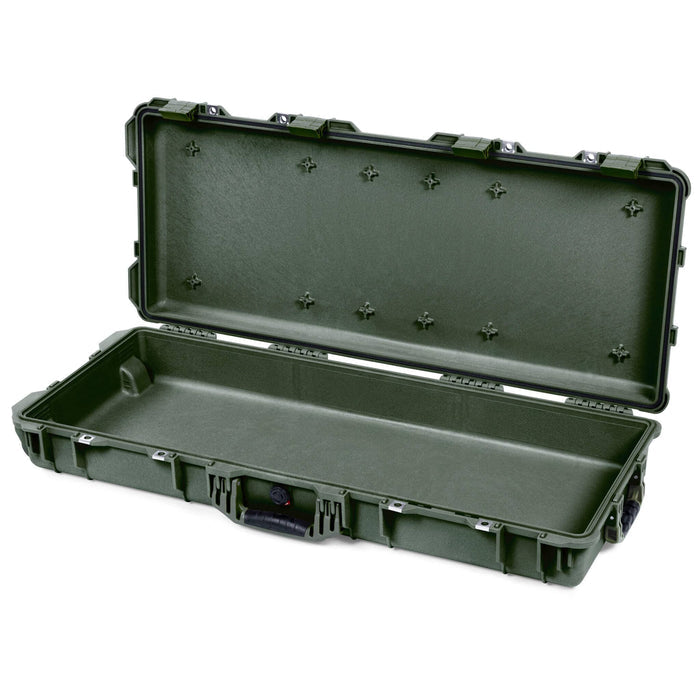

Pelican 1700 Protector Long Case, OD Green (Gen2)

Pelican™ 1700 Hard Case

• Interior: 35.76" x 13.73" x 5.35"
• Weight: 15.10 lbs
• Series: Protector Case
• Color: OD Green
• Latches Style: Double-Throw
• Wheels: Yes (2)

• Features

• Dimensions

• Specs

• Accessories

• Drawings

• • Watertight rubber O-ring seal, crush-proof, and dust-proof
  • Automatic pressure equalization/purge valve that balances air pressure inside the case
  • Open-cell core with solid walls designed to make a strong yet lightweight polypropylene case
  • Polyurethane wheels with stainless steel bearings for rolling travel
  • Four extra-robust double-throw latches
  • Ergonomic comfort grip rubber over-molded handles including two fold-down end handles
  • Stainless steel hinge pins and reinforced padlock protectors
  • 12 lid bosses for mounting lid accessories such as 1500MP EZ-Click™ MOLLE Panels
  • Genuine Pelican™ product with lifetime warranty
• • Lid Depth: 1.79" (4.5 cm)
  • Bottom Depth: 3.54" (9.0 cm)
  • Total Depth: 5.35" (13.6 cm)
  • Interior (L X W X D): 35.76" x 13.73" x 5.35" (90.8 x 34.9 x 13.6 cm)
  • Exterior (L X W X D): 38.47" x 16.42" x 6.14" (97.7 x 41.7 x 15.6 cm)
  • Weight (Empty): 15.10 lbs (6.8 kg)
  • Weight (with Foam): 16.85 lbs (7.6 kg)
• • Internal Volume: 1.52 ft³
  • Padlock Hole Diameter: 0.31" (0.8 cm)
  • Case Material: Polypropylene
  • Latch Material: ABS
  • Pins Material: Stainless Steel
  • Purge Body Material: ABS
  • Purge Vent Material: 3 Micron Hydrophobic Non-Woven

• EZ-Click™ MOLLE Panels

  • Includes two (2) 1500MP EZ-Click™ MOLLE Panels
  • Perfect for attaching all types of MOLLE bags, pouches & accessories
  • Each panel is removable with twist-lock cams
  • Installs in the case's lid bosses with included posts and screws




  Pick & Pluck Foam

  • Pelican Pick & Pluck foam is a 1.3 lb polyurethane foam with a perforated 1/2" x 1/2" grid of removable foam squares. Remove only what you need for a customized fit.




  Solid Foam

  • Pelican Solid foam is a 1.3 lb polyurethane foam. Cut with a knife for a customized fit.

• Download Drawings*

  • Pelican 1700 Gen2 Protector Long Case Dimensional Drawing

  *Drawings are the sole and exclusive property of Pelican Products, Inc. ("Pelican"). By downloading drawings you are agreeing to the terms and conditions outlined here: Confidential Information Terms and Conditions
